LYCCL-140
时间：2025-08-22 10:46:27 点击：
40
Normal FR4.0 Tg140
半固化片( Prepreg)-B-STAGE 品名：LYPP-140
覆铜板( Laminates)-C-STAGE 品名：LYCCL-140

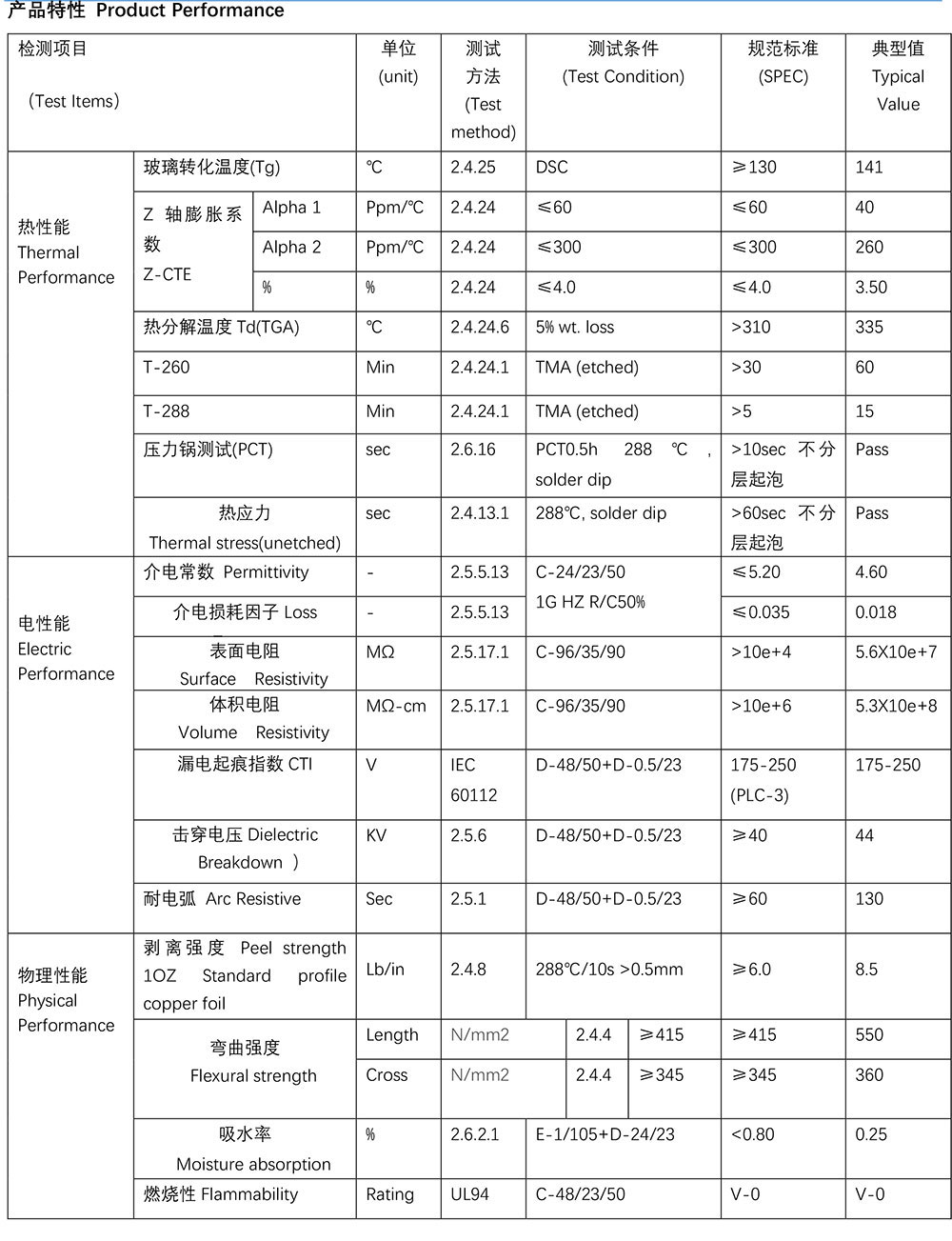

产品特性 Product Properties
四功能环氧树脂能提⾼覆铜板，更稳定的尺寸安定性和可靠的通孔性。
Tetra- functional epoxy is designed for a higher Tg, better dimensional stability and through hole
reliability.
UV Blocking和AOI兼容，可以提⾼PCB生产效率。
UV Blocking And AOI Compatibility good soldering reliability.
优良的耐热性能、机械性能、电性能、化学性能。
Excellent heat resistance properties, Mechanical properties, Electrical properties and Chemical
properties.
无铅制程兼容 Compatible with Lead-free process
产品应用 Product Application
消费电子、仪器仪表、摄像机、电子游戏机等
Consumer electronics, instruments, cameras, electronic game consoles, etc
不适用于有CAF要求的应用
Not suitable for applications with CAF requirements
不适用于2oz以上厚铜以上的⾼多层板
Not suitable for over 2oz heavy copper of high multi-layer boards.
不适用于孔间距≤0.35mmPCB及HDI⾼精密互连PCB的制作与⼯艺。
Not Suitable for drill hole spacing ≤ 0 . 3 5 mm PCB and requires high-precision performance
interconnection HDI PCB Manufacturing process.
